Scaffold Walkway Boards
Anti-Slippery is a high performance and reliable alternative to traditional materials, specifically engineered to withstand the challenges of demanding construction environments. It stands out with key features that make it the ideal choice for a wide range of applications.
Superior Anti-Slip Properties
Its textured or studded surface provides excellent grip even in the harshest conditions such as rain, mud, oil, or debris, significantly reducing the risk of slips and falls.
Weatherproof And Low Maintenance
Non-absorbent and unaffected by water exposure. Cleaning is quick and easy usually just a simple rinse with water is enough.
Exceptional Durability and Longevity
Highly resistant to impact, chemicals, and UV radiation. It does not rot, rust, or corrode, offering a longer service life and minimizing the need for frequent replacement.

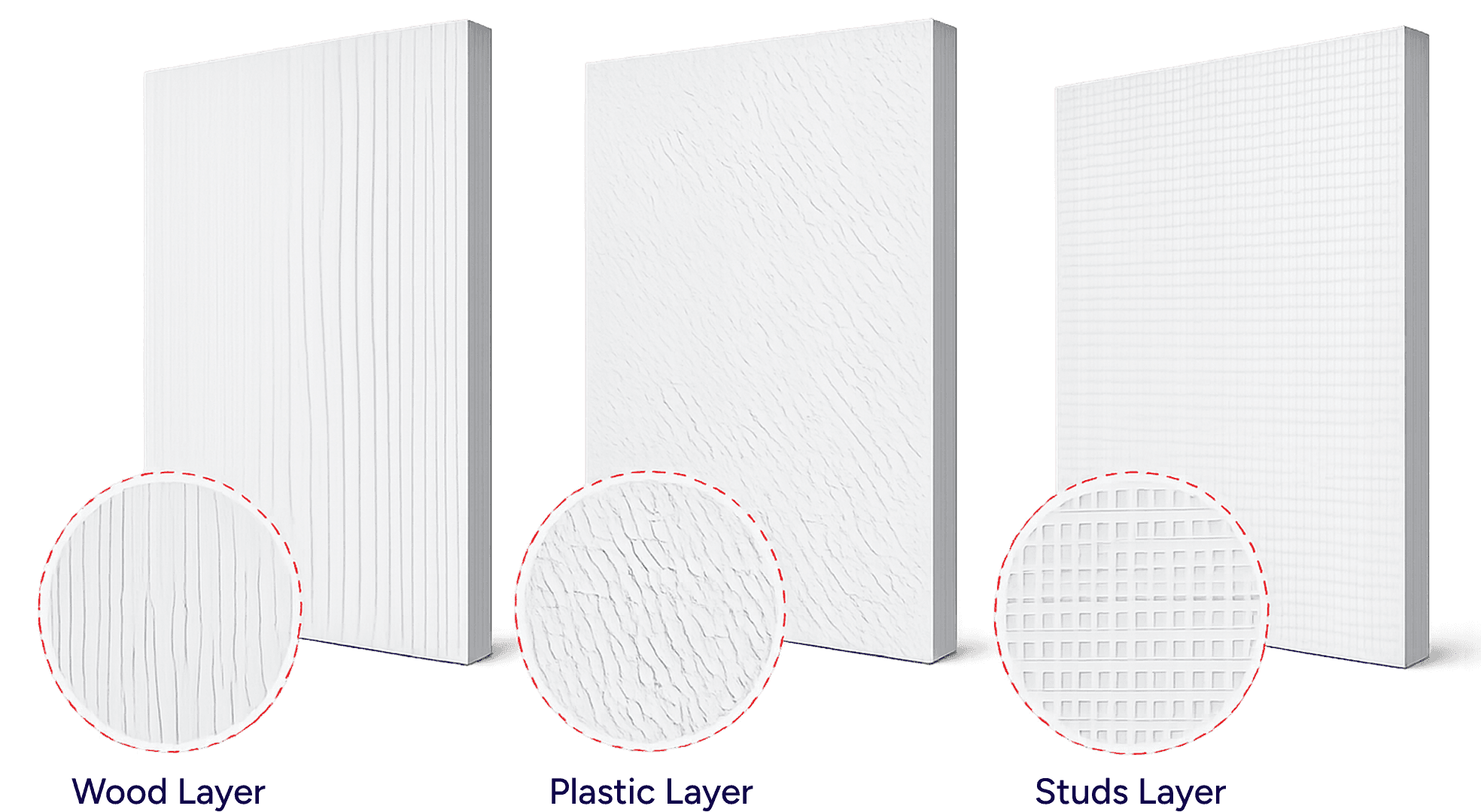

Anti-Slip Pattern Options
Product Specifications
Dimensions (Mm)
Customizable Upon Request
Length: up to 6000mm, width: up to 1250mm
Thickness: 8mm, up to 30mm with intervals each 0.50mm
Tolerance (Mm)
Length ± 0.5mm/M
Width ± 0.5mm/M
Thickness ± 0.3mm
Technical Specifications Of (Anti-Slip Board)
Thickness | Modulus Of Elasticity | Static Bending | Allowable Stresses | Tensile Stress | Anti-Slippery Class | Max. Live Loads | Vicat Softening Temperature | Water Absorption Rate | Fire Retardant |
|---|---|---|---|---|---|---|---|---|---|
9 MM | 3500 | 52 | 28.43 | 15 | Good > 45 PTV | 2KN/M2 Class 3 | 85°C | <0.09% | Grade A |
12 MM | 3500 | 45 | 24.60 | 15 | |||||
15 MM | 3000 | 38 | 20.78 | 13 | |||||
18 MM | 2500 | 31 | 16.95 | 11 | |||||
21 MM | 2000 | 24 | 13.12 | 11 | |||||
27 MM | 1800 | 18 | 9.84 | 11 | |||||
Test Method | ASTM D790 – 17 | ASTM D790 – 17 | ASTM D790 – 17 | ASTM D790 – 17 | ASTM D143-14 | ASTM D143-14 | ISO 527-1:2019 | ASTM D790 – 17 | ASTMD570-22 |
Processing
On-Site: Functions comparable to plywood.
Industrial Production: Optimized for precise cutting and drilling

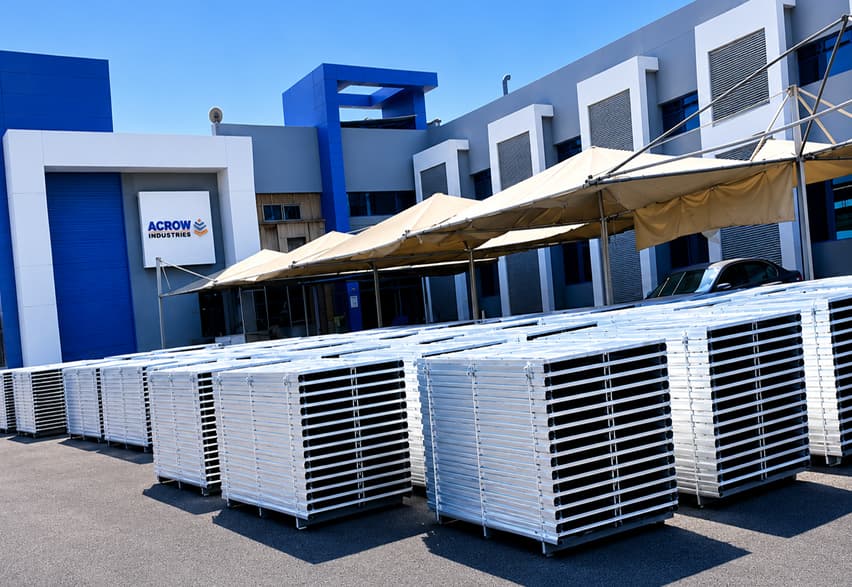

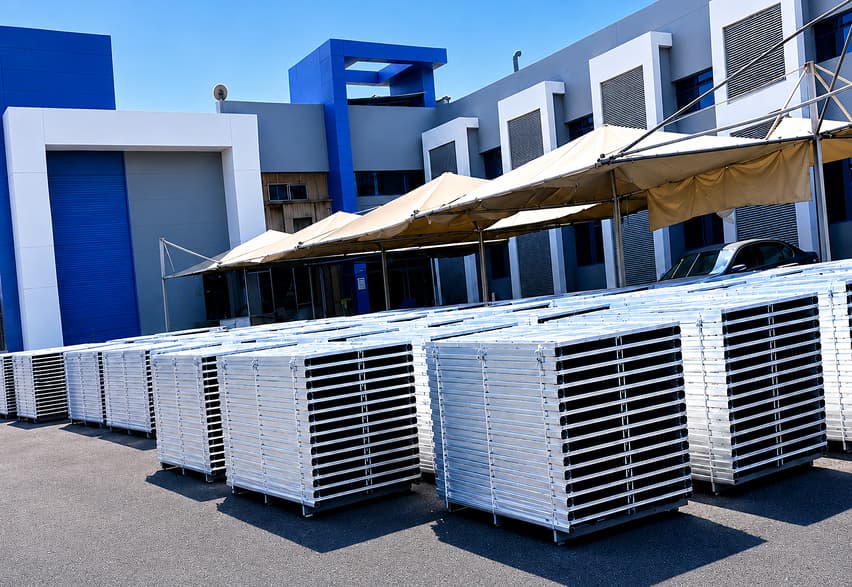

Egypt International Airshow El Alamein Project Project
For More Information
Download our scaffold board catalouge
